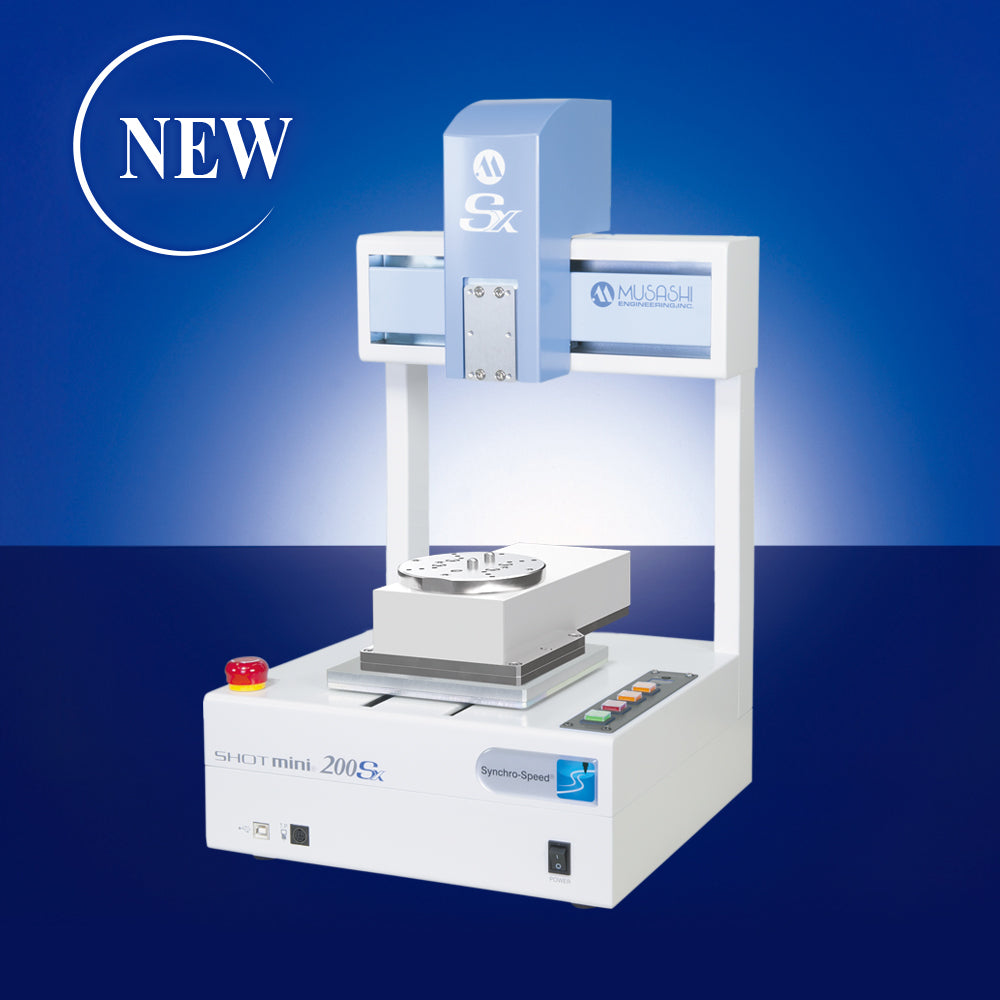

Desktop Robot MUSASHI SHOTMASTER Mini 200Sx
Desktop Robot MUSASHI SHOTMASTER Mini 200Sx
ราคาปกติ
0.00 THB
ราคาปกติ
ราคาโปรโมชัน
0.00 THB
รวมภาษีแล้ว
ปริมาณ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
Impossible with a plus 1 axis
Easy to create programs Various heads are available
■Tilt head specification
Interpolation Control: Control in which each specified axis moves to the end point coordinates at the interpolated synthetic speed.
Note: "4-axis Desktop robot" is our Desktop robot SHOTMASTER series.
This is a general term for products that combine related options.
Please refer to the following related product page for the lineup of the robot body.
The angle can be adjusted arbitrarily according to the workpiece.
■Dispense head rotation specificationIt is possible to apply without obstacles and apply to vertical grooves.
■Rotating tableContinuous rotation and angle specification rotation are possible.
SPECIFICATIONOutline Specifications
Rotating Table Option Specifications
Model
SMX-RU-1-MU
Applicable products (robots)
SMΩX/SX Series (3-axis type only)
XMΩX/RX/SX Series (3-axis type only)
XMΩX/RX/SX Series (3-axis type only)
Control method *
PTP Control, Interpolation Control
Rated voltage
DC 24V (supply from the robot body)
Power consumption
46W
Material
Main body: Aluminum alloy, stainless steel,
Exterior cover: Steel (coating processing)
Exterior cover: Steel (coating processing)
External dimensions (excluding protrusions)
W110 ×D185 ×H57 mm
Mass
1.66kg
Conformity Standards
EU RoHS2, CE Marking (EMC Directive)
＊ PTP Control: Control in which each specified axis moves to the end point coordinates at their respective speeds.
Interpolation Control: Control in which each specified axis moves to the end point coordinates at the interpolated synthetic speed.
Note: "4-axis Desktop robot" is our Desktop robot SHOTMASTER series.
This is a general term for products that combine related options.
Please refer to the following related product page for the lineup of the robot body.
